Active Pd nanoclusters supported on nitrogen/amino co-functionalized carbon for highly efficient dehydrogenation of formic acid
Abstract
Supported noble metal catalysts have exhibited satisfactory catalytic performance in the dehydrogenation of liquid chemical hydrogen carriers, in which the supports play a paramount role in conditioning the nature of the active center and thus improving the overall reactivity. Herein, the specially designed nitrogen/amino co-functionalized carbon (NH2-NC) supports are prepared to load active Pd nanoclusters for efficient dehydrogenation of formic acid (FA). The nitrogen/amino co-functionalization of carbon not only facilitates the Pd nanoclusters evenly dispersed with a mean size of 1.4 nm, but also provides a beneficial metal-support interaction to promote FA dehydrogenation. The as-prepared Pd@NH2-NC discloses a 100% conversion of FA into CO2 and H2 with a remarkable initial turnover frequency (TOFinitial) of 4,892 h-1 and a low activation energy (Ea) of 28.5 kJ mol-1 without additive at 298 K. The work proposes a co-functionalization strategy to reasonably design supports for heterogeneous catalysts and may be extended to develop other multi-functionalized supports with different compositions and nanostructures.
Keywords
INTRODUCTION
Hydrogen storage technologies based on liquid chemical hydrogen carriers have attracted more and more attention due to their safety, convenience, and high efficiency[1-4]. Among them, formic acid (HCOOH, FA) has the advantages of low dehydrogenation reaction enthalpy (30 kJ·mol−1), high hydrogen gravimetric density (4.4 wt %), and volumetric capacity (53.4 g·L−1), a wide range of sources from biomass process and CO2 reduction, non-toxicity and excellent stability in the liquid state, demonstrating great potential for liquid chemical hydrogen storage[5-8]. The decomposition of FA can take place through two pathways, one is the dehydrogenation process into H2 and CO2 and another is the dehydration process into H2O and CO[9,10]. The CO generated from the dehydration pathway is the undesired product, which will seriously poison noble metal catalysts and lead to a quick deactivation of catalytic performance[11,12]. Furthermore, in order to effectively release H2, the decomposition of FA requires higher temperature and extra additives (such as HCOONa and HCOONH4), further complicating catalysis[13,14]. Therefore, it is greatly significant to develop desired catalysts with high selectivity and efficiency for FA dehydrogenation under mild conditions.
Pd-based catalysts have displayed remarkable activity toward the dehydrogenation of FA[15-17]. Especially, the heterogeneous catalysts with Pd nanoparticles dispersed on various supporting materials disclosed outstanding activity[18]. The use of supports is critical for facilitating the uniform dispersion of metal catalysts with maximum utilization and preventing the metal active sites from agglomeration and loss, thus leading to further improvements in catalytic activity and stability[19,20]. In addition, the unique surface chemical and electronic properties of supports induce strong metal-support interactions, which has a great effect on improving the catalytic performance of catalysts[21,22]. Therefore, surface modification of support with selective functions is a more extensive strategy to obtain desired catalytic performance[23,24]. For instance, heteroatom (N, B, P, S) doping in the carbon can provide anchoring sites to stabilize the metal centers with uniform dispersion and introduce a strong metal-support interaction[25-29]. The introduction of N in the carbon supports has been proven active for FA dehydrogenation, in which the N atoms can anchor Pd nanoparticles on supports with good dispersion, causing an improved catalytic performance[30,31]. Moreover, the doped electronegative N atoms contribute to the surface electronic modulation of Pd nanoparticles via electron transfer, which also facilitate the efficient cleavage of C-H bonds[32,33]. Although the modification of carbon supports with the N atoms can selectively catalyze the dehydrogenation of FA, extra additives are still needed to obtain a satisfactory performance, which hinders their widespread use. In addition, amine functional groups can also be used to decorate support materials for promoting FA dehydrogenation[34-36]. It has been reported that the amine functional group has nucleophilicity and can serve as a proton scavenger to facilitate the O-H bond cleavage, thus resulting in enhanced activity in FA dehydrogenation[37,38]. Another important role of amine groups is to be used as a capping agent to protect metal nanoparticles from aggregation and growth, while it is noteworthy that more defect points will emerge as the particle size decreases, which would increase CO adsorption and cause catalyst poisoning[3]. Considering the advantages and disadvantages of the above two modifications discussed, which inspire us to combine both functionalization groups on carbon supports to construct a heterogeneous catalyst, with the synergistic promotion of Pd and nitrogen/amino groups for the FA dehydrogenation.
In this work, we propose the preparation of ultrafine Pd nanoclusters supported on nitrogen/amino co-functionalized carbon toward FA dehydrogenation. The carbon supports with abundant nitrogen-dopant atoms and amino groups enable the controllable growth of 1.42 ± 0.3 nm Pd nanoclusters with uniform dispersion. Attributing to the multiple synergies of Pd nanoclusters, nitrogen-dopant, amino groups, and metal-support interaction, the as-prepared Pd@NH2-NC displays excellent catalytic performance for FA dehydrogenation. Specifically, a 100 % conversion of FA into CO2 and H2 is completed over Pd@NH2-NC catalyst without additive at room temperature, providing a remarkable initial turnover frequency (TOFinitial) of 4,892 h−1 and a low activation energy (Ea) of 28.5 kJ·mol−1. These results highlight that proper multifunctional modifications of the supports have a synergistic promoting effect on catalytic reaction, providing a reference for the development of highly efficient heterogeneous catalysts.
EXPERIMENTAL
Chemicals
Sodium tetrachloropalladium (Na2PdCl4, 98 %), sodium borohydride (NaBH4), (3-aminopropyl) triethoxysilane (APTS, 99 %), urea (AR, 99 %), and formic acid (FA, HCOOH, GR, ≥ 98 %) were purchased from Aladdin Reagents Ltd. Ethanol was purchased from FuYu Chemical Reagents. Vulcan XC-72 carbon was purchased from Cabot Carbon Ltd. All chemicals were used directly without subsequent treatment.
Preparation of nitrogen-functionalized carbon supports
Nitrogen-functionalized carbon supports (NCs) were prepared by a “soft nitriding” method according to previously reported work[39]. Typically, 1.5 g of urea was first ground into powder and mixed with 1.0 g of Vulcan XC-72 carbon in a mortar. Then, the mixed powder was placed in a crucible, then wrapped in tinfoil and heated at 150 °C for 2 h and 300 °C for another 2 h in a tube furnace. The obtained powder was repeatedly washed with water and ethanol. Finally, the as-prepared NC was dried at 60 °C overnight.
Preparation of Pd cluster supported on nitrogen/amino co-functionalized carbon (Pd@NH2-NC)
In a typical preparation of Pd@NH2-NC, 120 mg of NC was added to 30 mL of water under ultrasound for 1 h. Then, 0.5 mL of APTS was added to the above solution with ultrasonic treatment for 1 h and stirring for 1 h. Then, 1.0 mL of 6 mg·mL-1 Na2PdCl4 was dripped into the mixed solution. After stirring for another 2 h, 3.0 mL of NaBH4 (10 mg·mL-1) was introduced into the above solution, followed by stirring for 2 h. Finally, the obtained Pd@NH2-NC was centrifuged and repeatedly washed with water, and dried at 60 °C.
The reference Pd@NH2-C catalyst was prepared by the same process as Pd@NH2-NC catalyst except that unfunctional carbon was used instead of NC. The reference Pd@NC catalyst was obtained with the same process as Pd@NH2-NC catalyst but in the absence of APTS. The reference Pd@C catalyst was prepared in the same way as Pd@NH2-NC catalyst, except for the addition of 100 mg of unfunctional carbon and in the absence of APTS.
FA dehydrogenation reaction
The reaction was carried out in a set-up as shown in Supplementary Figure 1. Typically, 160 mg of catalyst and 3.0 mL of water were mixed in the sealed round-bottom flask with ultrasonic treatment for 30 min, and then placed in a water bath at 298 K with stirring. The sealed round-bottom flask was connected to an inverted cylinder filled with water via a gas conduit. Then, the reaction started when 1.0 mL of FA solution (3.0 M) was injected into the round-bottom flask with a syringe. The volume of gas released was determined by the displacement of water in the cylinder over time. The displacement of water in the cylinder reached 10 mL as a unit, and the corresponding time was recorded to obtain the plots of gas volumes generated versus time. The reaction thermodynamics of FA dehydrogenation was studied by setting test temperature as 298, 303, 313, 323, and 333 K, and the kinetics of FA dehydrogenation was determined by adjusting the concentrations of Pd (5.75, 8.50, 11.25, and 14.00 mM) and the concentrations of FA (0.25, 0.50, 0.75, and 1.00 M).
For the durability tests, the equivalent of pure FA (3.0 mmol) was injected into the reaction mixture after the first dehydrogenation of FA. The resulting gas was determined by the displacement of water in the cylinder. Such a recycling process was repeated another 3 times at 298 K.
The conversion of FA (xa) was obtained by the equation (1):
Where Patm is the atmospheric pressure (101325 Pa), Vgas refers to the volume of final released gas (CO2 +
The TOF values were calculated by equation (2):
Where TOFinitial refers to the initial turnover frequency when the conversion xais 20 %, nmetal is the total molar number of Pd in catalyst, and t represents the reaction time when xa is 20 %. When the final reaction conversion is lower than 20 %, the TOFinitial is based on the final conversion, which will be specified in the text.
Characterizations
Transmission electron microscopy (TEM), high-resolution transmission electron microscopy (HR-TEM), high angle annular dark field scanning transmission electron microscopy (HAADF-STEM) and energy-dispersive X-ray spectroscopy (EDS) analysis were carried out using JEOL JEM-2100 and Talos-F200X. The X-ray diffraction (XRD) patterns were acquired on a D/Max-3c (Rigaku) X-ray diffractometer by using Cu Kα radiation source (λ = 1.5406 Å). X-ray Photoelectron Spectroscopy (XPS) was carried out on a Thermo Fisher Scientific ESCALAB Xi+ spectrometer with an Al Kα radiator. Fourier infrared spectrum (FTIR) spectra were performed on Thermo Fisher Scientific Nicolet iS50 FTIR Spectrometer. The content of Pd in the catalysts was determined by a NexION 350D inductively coupled plasma atomic emission spectroscopy (ICP-MS). The Raman spectra were carried out on HR800 from HORIBA Jobin Yvon company. The contact angle measurements were performed using a DSA100 contact angle meter from KRUSS company. The composition of released gas from FA dehydrogenation was detected by a North Point NP-GC-901A gas chromatograph (GC) with a TCD and FID. A Micromeritics ASAP 2020 Plus was used to obtain nitrogen (N2) sorption isotherms of catalysts. Raman measurements were carried out on a HR800 Raman spectrometer with a 633 nm laser excitation.
RESULTS AND DISCUSSION
The synthetic strategy of Pd nanoclusters supported on nitrogen/amino co-functionalized carbon supports is illustrated in Scheme 1. First, the NC support was prepared through a soft nitriding technique as reported[39,40]. After that, APTS was fully mixed with NC aqueous solution under ultrasonic and stirred to modify the supports with amino groups. Then, quantitative Na2PdCl4 aqueous solution was added to the above mixture with stirring for 2 h. After that, NaBH4 solution was introduced into the above suspension and stirred for another 2 h to reduce Pd precursor. Finally, the obtained Pd@NH2-NC was centrifuged and repeatedly washed with water. For comparison, the reference Pd@NH2-C, Pd@NC, and Pd@C were also prepared in the same strategy.

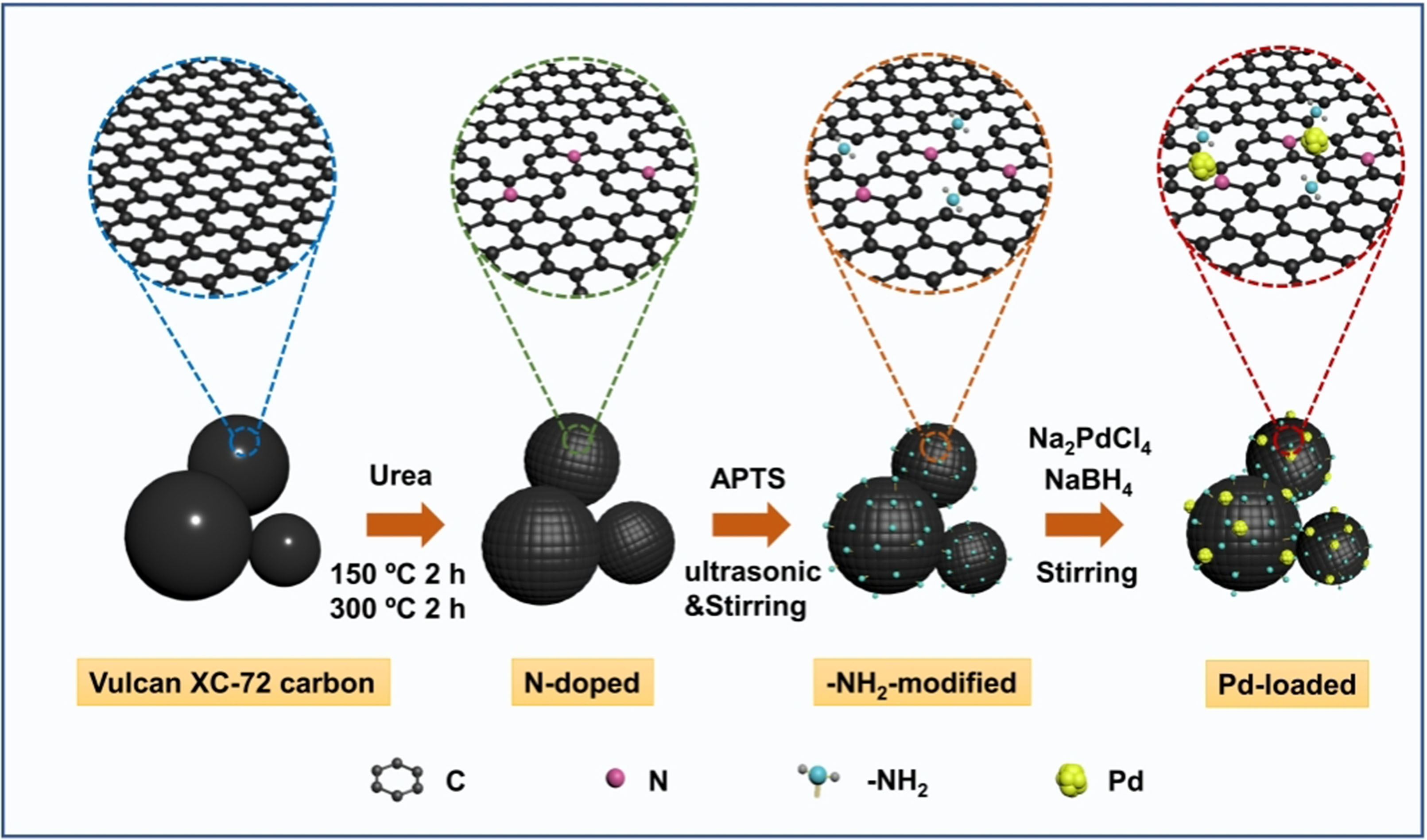

Scheme 1. A scheme illustrating the synthesis routes of Pd@NH2-NC.
As shown in Figure 1a, the Pd nanoclusters with ultrasmall size are uniformly dispersed on the nitrogen/amino co-functionalized carbon surface without any aggregation. The HR-TEM image shown in Figure 1b reveals a lattice spacing of 1.94 Å, corresponding to the (200) crystal face of Pd. The uniform small size (1.42 ± 0.3 nm) and good dispersion of Pd nanocluster are clearly shown in the HAADF-STEM image and particle size distributions histogram in Figure 1c and d. The TEM images of reference catalysts are also shown in Supplementary Figure 2. Obviously, Pd nanoparticles show larger size and poorer dispersion on supports for Pd@NH2-C, Pd@NC, and Pd@C. The results indicate that the nitrogen/amino co-functionalization can provide abundant anchor sites for Pd active centers, resulting in the reduced size and uniform distribution of Pd nanoclusters on carbon supports. Furthermore, the STEM-EDS analysis in Figure 1e-h clearly demonstrates the distribution of Pd and N on carbon supports. The content of Pd in different samples is evaluated by ICP-MS, and the mass loadings of Pd in the Pd@NH2-NC, Pd@NH2-C, Pd@NC, and Pd@C are estimated to be 1.6 wt. %, 1.6 wt. %, 1.3 wt. %, and 2.1 wt. %, respectively. Meanwhile, the N2 sorption isotherms of all sample show type I and type IV isotherms, suggesting that there are micropores (1.0-1.6 nm) and mesopores (larger than 4 nm) in the samples [Supplementary Figure 3]. The BET surface areas of C, Pd@C, Pd@NC, Pd@NH2-C, Pd@NH2-NC are measured as 238.6, 184.6, 90.4, 93.2, 78.0 m2·g-1, respectively.

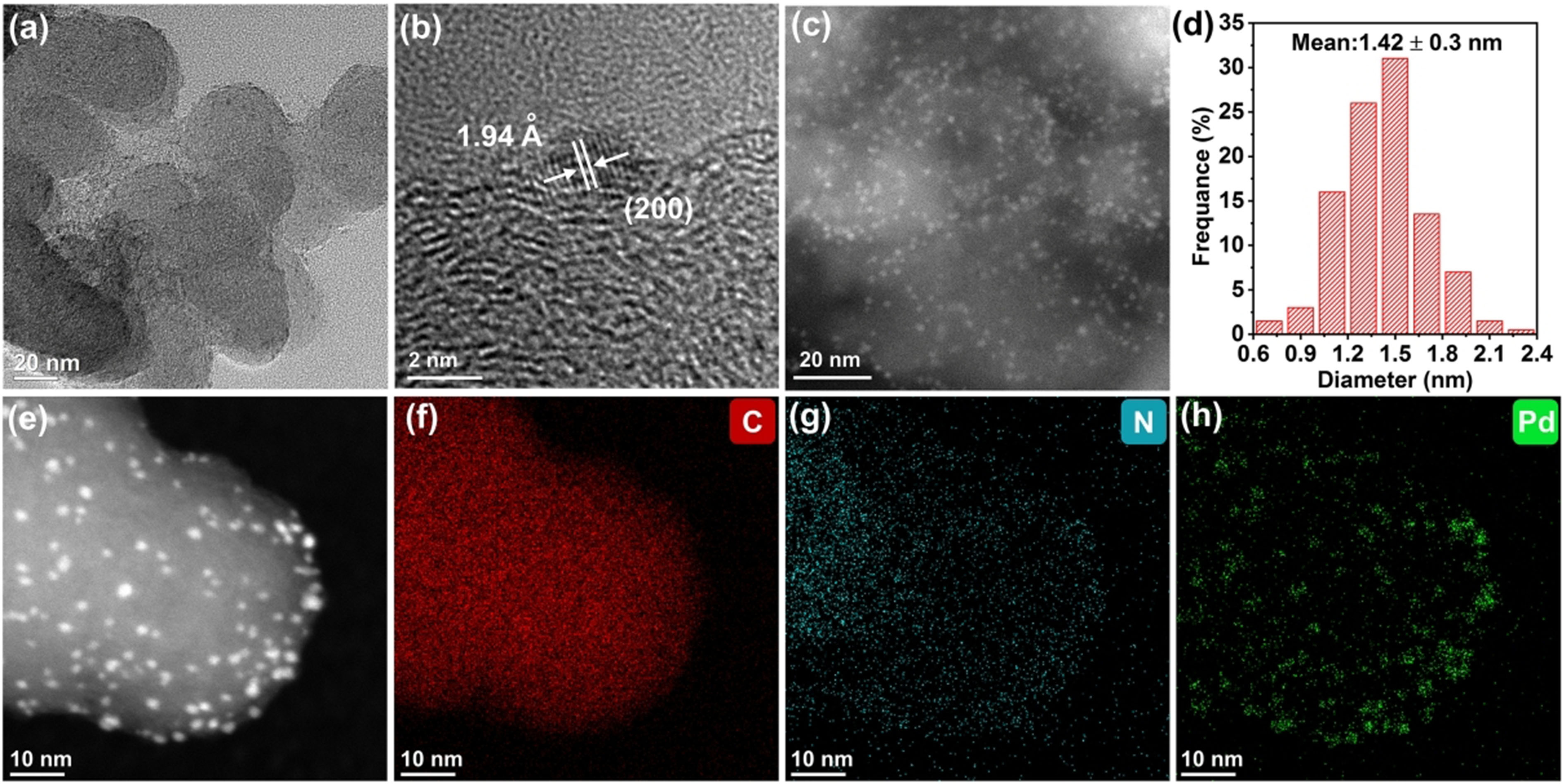

Figure 1. (a) TEM; (b) HR-TEM; (c) HAADF-STEM images; (d) particle size distributions histogram of Pd clusters; (e) HAADF-STEM image and (f-h) corresponding EDS mapping images of Pd@NH2-NC. EDS: energy dispersive X-ray spectroscopy; HAADF-STEM: high angle annular dark field scanning transmission electron microscopy; HR-TEM: high-resolution transmission electron microscopy; TEM: Transmission electron microscopy.
The structural characteristics of catalysts were studied by XRD first [Figure 2a]. All catalysts reveal two broad peaks at 25º and 43º ascribed to the (002) and (101) crystal planes of amorphous carbon[41]. In addition, three clear diffraction peaks positioned at 40º, 47º, and 68º can be observed in Pd@C catalyst, which correspond to the (111), (200) and (220) planes of Pd, respectively. Notably, no significant diffraction peaks of Pd were observed for Pd@NH2-NC, Pd@NH2-C and Pd@NC due to the ultrasmall size of the Pd over the supports, which agrees well with the TEM characterization. Furthermore, Raman spectra display two distinct peaks at 1,338 cm-1 and 1,588 cm-1, which are known as D and G bands, corresponding to disordered and graphitic carbon, respectively [Figure 2b]. The Pd@NH2-NC shows a high ID/IG value of 1.00, which is higher than Pd@NH2-C (0.98), Pd@NC (0.99) and Pd@C (0.91), suggesting more defects introduced by nitrogen/amino co-functionalization of carbon supports. The FT-IR spectra were performed to confirm the successful nitrogen/amino co-functionalization [Figure 2c]. As compared with Pd@C, distinguished new peaks appear at 1193 and 1721 cm-1 for Pd@NH2-NC, Pd@NH2-C, and Pd@NC, which are ascribed to the stretching of C-N and C=O groups, respectively, suggesting the successful modification of surface nitrogen[39,42]. Moreover, for the Pd@NH2-NC and Pd@NH2-C, the peak at 1,121 cm-1 originates from the asymmetric stretching of the Si-O-C bonds, and the peaks at 2,870 cm-1 and 2,932 cm-1 originate from the -CH2- stretching from APTS, indicating the efficient graft of amino group on carbon. The photographs in Figure 2d (below) display the hydrophilicity and dispersibility of the samples in water. It is clear that Pd@NH2-NC and Pd@NC are well dispersed in the water and remained for 60 min. In comparison, the Pd@NH2-C and Pd@C show different degrees of sedimentation. Meanwhile, the contact angle measurements were performed to investigate the surface wettability of samples. As shown in Figure 2d (above), the Pd@C sample shows an initial water contact angle of 64.3º, and the water contact angles of Pd@NC, Pd@NH2-C, and Pd@NH2-NC decrease to 35.0º, 43.6º, and 36.3º, respectively. These results illustrate that the nitrogen and amino functionalization of carbon supports is efficient for enhancing the surface wettability of samples, which thus benefits the full contact between FA molecules and Pd sites and thus improves the catalytic activity.

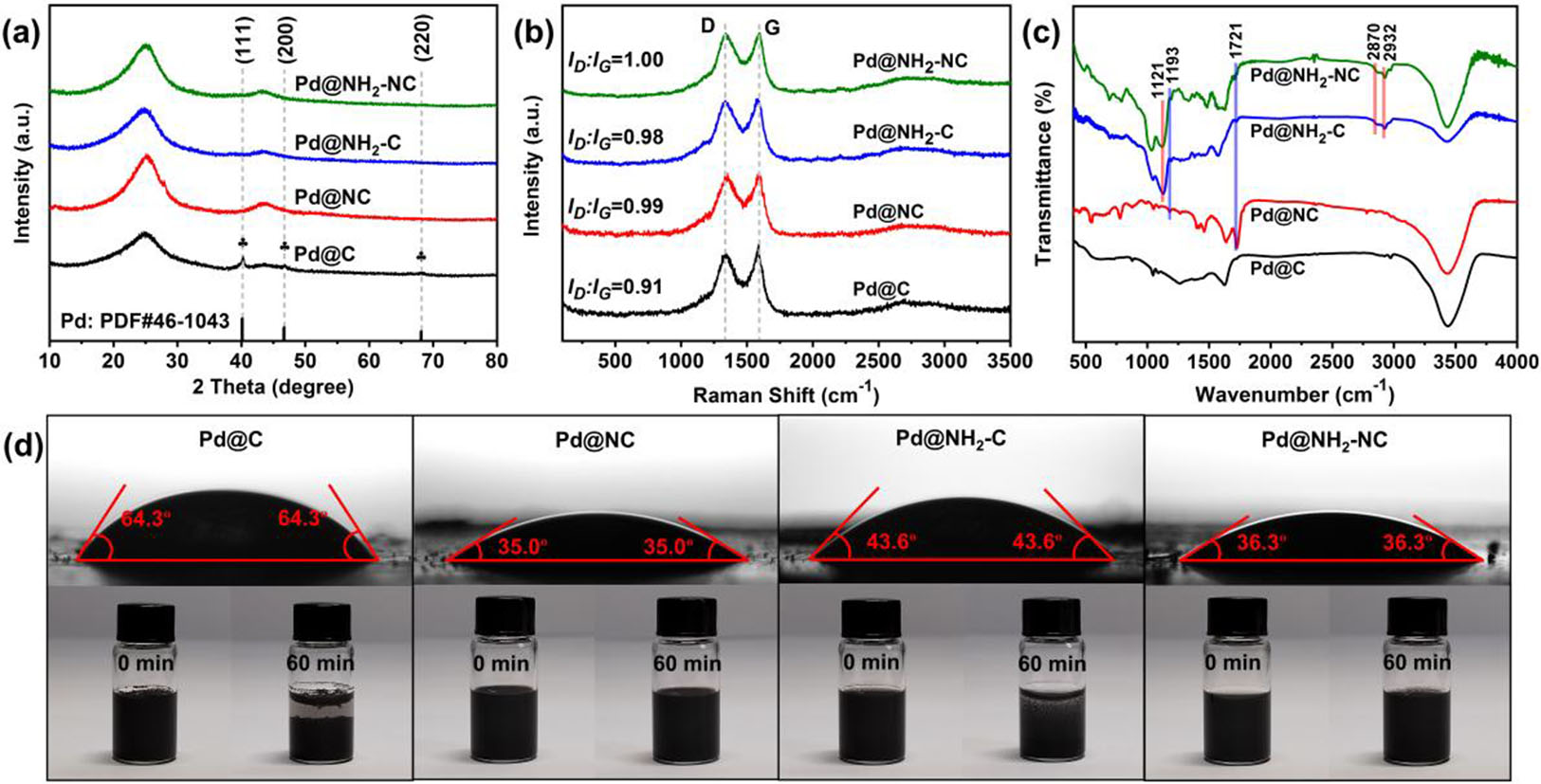

Figure 2. (a) XRD patterns; (b) Raman spectra; (c) FT-IR spectra; (d) water contact angles (above) and photographs (below) for Pd@NH2-NC, Pd@NH2-C, Pd@NC, and Pd@C. XRD: X-ray diffraction.
In order to investigate the elements and corresponding chemical states, the XPS characterization of Pd@NH2-NC and the reference samples was tested. The full scan spectra show that four catalysts contain C, O, and Pd, while Pd@NH2-NC, Pd@NH2-C, and Pd@NC also include an N element, indicating the successful nitrogen/amino functionalization of carbon supports [Figure 3a]. The nitrogen contents of Pd@NH2-NC (9.2 at. %) and Pd@NC (8.1 at. %) are higher than that of Pd@NH2-C (1.8 at.%), suggesting that nitrogen functionalization can greatly increase the content of nitrogen in the catalysts. The high-resolution C 1s spectra in Figure 3b display similar peaks at 284.8, 286.1, 286.6, and 288.9 eV for all samples, which are attributed to C-C, C-O, C=O, and O-C=O, respectively. For Pd@NH2-NC, Pd@NH2-C, and Pd@NC, a different peak at 285.6 eV corresponded to the C-N bond is observed, indicating that as-prepared samples possess the nitrogen-containing functional group[43]. From the high-resolution N 1s spectra [Figure 3c], the Pd@C displays no obvious peak, while the Pd@NH2-NC, Pd@NH2-C, and Pd@NC show three different nitrogen species, which are attributed to pyridinic N (at 398.8 eV), amine/amide groups (at 400.0 eV) and quaternary N (at 401.2 eV), respectively. As shown in Figure 3d, the Pd 3d spectra display a doublet and deconvolute into four peaks attributing to the Pd0 3d5/2, Pd0 3d3/2, Pd2+ 3d5/2 and Pd2+ 3d3/2, respectively. The presence of Pd2+ can be induced by the oxidation of the surface Pd nanoclusters in air and a large electron transfer from Pd to electronegative N/C atoms. Quantitative peak deconvolution and integration of XPS analysis show that the Pd0 contents in Pd@NH2-NC, Pd@NC, Pd@NH2-C, and Pd@C are 60.02%, 10.65%, 38.83%, and 20.93%, respectively. Pd@NH2-NC displays the increased Pd0 content, suggesting the high ratio of metallic state Pd and few defects on the surface, indicating good catalytic stability[44]. In addition, the

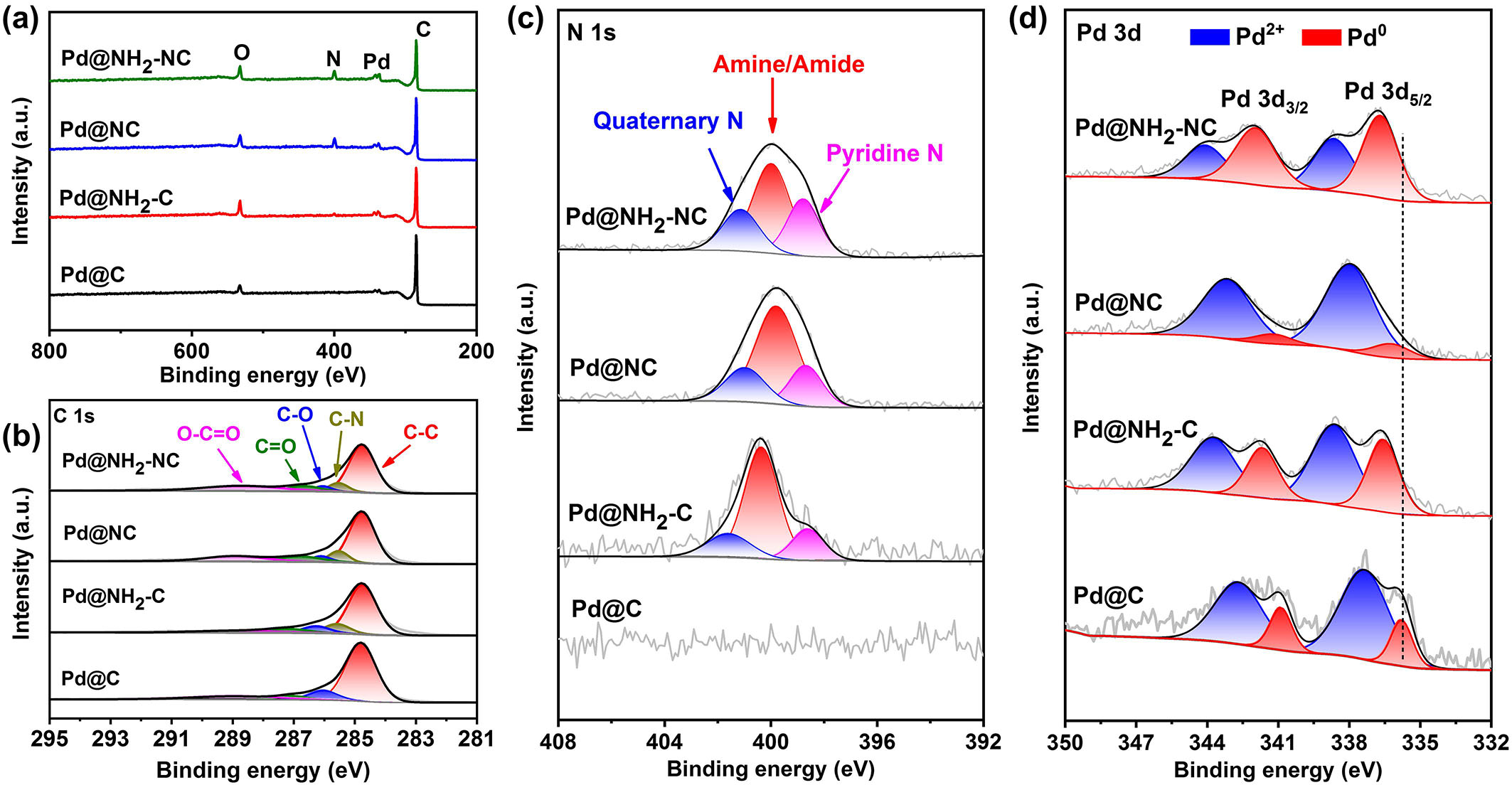

Figure 3. (a) XPS survey spectra; (b) high-resolution XPS C 1s spectra; (c) N 1s spectra; (d) Pd 3d spectra of Pd@NH2-NC, Pd@NH2-C, Pd@NC, and Pd@C. XPS: X-ray Photoelectron Spectroscopy.
The catalytic performance of Pd@NH2-NC, Pd@NH2-C, Pd@NC, and Pd@C for dehydrogenation of FA (0.75 M, 4.0 mL) was evaluated without any additives at 298 K. Figure 4a and b show the plots of gas volumes generated versus time and corresponding TOFinitial for above four catalysts. The Pd@NH2-NC exhibits the best catalytic activity with 146 mL gas generated in only 2.92 min, suggesting a 100 % conversion of FA and a TOFinitial value of 4,892 h-1. In comparison, Pd@NH2-C and Pd@NC need longer reaction times of 5.5 and 80.0 min, corresponding to the TOFinitial values of 1,968 h-1 and 513 h-1, respectively. In addition, Pd@C catalyst shows insufficient activity (26 h-1), with 41 mL of gas released in 90 min (28 % conversion). Furthermore, the gas product released from FA dehydrogenation over Pd@NH2-NC was detected by GC [Figure 4c]. The result displays that the generated gas consists of H2 and CO2, without any CO, suggesting a 100 % H2 selectivity for FA dehydrogenation. The Raman measurements were further carried out to characterize intermediate species produced during the reaction. As shown in Supplementary Figure 5, the weak Raman peaks around 718 cm-1, 1,116 cm-1 and 1,552 cm-1 could be assigned to CO2*[47,48], while no peak of the CO* (2,035 cm-1) is observed[48], which further indicate high H2 selectivity. In addition, the dependence of the catalytic activity of the Pd@NH2-NC catalyst on the dosage of NaBH4, APTS, and urea added in the preparation process was investigated. As shown in Figure 4d-f, the Pd@NH2-NC discloses the highest catalytic performance with the optimal dosage of NaBH4 (30 mg), APTS (0.5 mL), and urea
Figure 4. (a) Generated V(H2 + CO2) versus time for the dehydrogenation of FA at 298 K and (b) corresponding TOF values over different catalysts; (c) Gas chromatography analysis results for (I, II) gas generated from FA, (III) commercial mixed standard gas containing CO and CO2, (IV) commercial pure H2; (d-f) Generated V(H2 + CO2) versus time for the dehydrogenation of FA and corresponding TOF values(insets) at 298 K for Pd@NH2-NC synthesized with (d) different amounts of NaBH4, (e) different amounts of APTS, and (f) different amounts of urea. TOF: turnover frequency.
The catalytic kinetics of Pd@NH2-NC for the dehydrogenation of FA were thoroughly investigated. Supplementary Figure 6 and Figure 5a show the time-dependent plots of the released gas and corresponding TOFinitial under various FA concentrations. Notably, the TOFinitial retains, with the FA concentration ranging from 0.25 M to 1.00 M, while a sharp decrease trend of TOFinitial is observed when the FA concentration increases from 1.00 M to 26.0 M. Meanwhile, GC results [Supplementary Figure 7] display that there is a small amount of CO generated when the FA concentration reaches up to 15.0, 20.0, 26.0 M, suggesting that the dehydration pathways occur under the high FA concentration and thus decrease H2 selectivity. These results indicate that the water content in the reaction system has a great influence on the catalytic performance and the H2 selectivity, which are consistent with previous reports[49,50]. We further evaluated the dehydrogenation of FA under different amounts of catalysts [Figure 5b]. The gas production rate gradually increases when the Pd concentration increases from 5.75 to 14.00 mM. The normalized plots between In rate and In [Pd] display a slope value of 1.01, indicating that the dehydrogenation of FA over Pd@NH2-NC catalyst is a first-order reaction in Pd concentration. The activation energy (Ea) of catalysts was also evaluated by testing the dehydrogenation of FA under elevated temperatures (298, 303, 313, 323, and 333 K). The time-dependent plots of the generated gas under different temperatures over Pd@NH2-NC, Pd@NH2-C, Pd@NC, and Pd@C are shown in Figure 5c and Supplementary Figure 8. The gas production rates are obviously promoted with the temperature increases. As shown in Figure 5d, the corresponding TOFinitial values of Pd@NH2-NC display as 4892, 5609, 8746, 11947, and 15788 h-1, which are highest compared with Pd@NH2-C, Pd@NC, and Pd@C at different temperatures. By fitting the Arrhenius plots between ln [TOF] and 1/T, the Ea value of the Pd@NH2-NC catalyst is calculated as 28.5 kJ·mol−1 [Figure 5e]. In contrast, Ea values of Pd@NH2-C, Pd@NC, and Pd@C are 40.5, 36.0, and 32.1 kJ·mol−1, respectively. The lowest Ea value of Pd@NH2-NC for FA dehydrogenation suggests the thermodynamically lowest reaction energy barrier for FA dehydrogenation. Furthermore, the TOFinitial value of Pd@NH2-NC is compared with other recently reported catalysts for FA dehydrogenation at 298, 323, and 333 K [Figure 5f]. Obviously, the as-prepared Pd@NH2-NC displays higher activity than those of Pd or Pd-based alloy catalysts quoted, and details of the experimental conditions and catalytic performance of these catalysts are listed in Supplementary Table 1.
Figure 5. (a) The TOFinitial values for the dehydrogenation of FA at 298 K over Pd@NH2-NC with different FA concentrations (The TOFinitial values at 20.0 M and 26.0 M were obtained when the conversion xa were 7.2 % and 2.7 %, respectively.); (b-c) Generated V(H2 + CO2) versus time for the dehydrogenation of FA at 298 K over Pd@NH2-NC with (b) different Pd concentrations (inset: the corresponding logarithmic plot of the gas generation rate versus the Pd concentration) and (c) different temperatures; (d) The TOF values of different catalysts at different temperatures and (e) corresponding Arrhenius plots (ln k versus 1/T); (f) Comparisons of catalytic activity of Pd@NH2-NC with other reported catalysts. TOF: turnover frequency; TOFinitial: initial turnover frequency.
The recycling stability of the as-prepared Pd@NH2-NC catalyst is further evaluated by re-injecting the same amount of pure FA into the previous mixture when the last reaction was completed at 298 K. As shown in Figure 6a, after five cycles, the complete dehydrogenation of FA can still be achieved with a slight decrease in gas generation rate. It only takes 10 minutes to generate 146 mL of gas in the fifth cycle, suggesting good catalytic stability of the Pd@NH2-NC catalyst. The XRD results show a small diffraction peak at 40º for spent Pd@NH2-NC, which indicates that the Pd nanoclusters suffer a slight aggregation with a larger particle size [Figure 6b]. Meanwhile, the TEM image of spent Pd@NH2-NC in Figure 6c indicates that the Pd nanoclusters are still evenly distributed on the carbon surface with a slightly increased size of 1.65 ± 0.5 nm. Additionally, XPS results further show that the nitrogen content of spent Pd@NH2-NC is determined as 7.9 at. %, which is slightly lower than that of fresh Pd@NH2-NC (9.2 at. %) [Figure 6d and Supplementary Figure 9]. There is a small amount of CO (0.23 %) for the fifth dehydrogenation of FA [Supplementary Figure 10], which may cause catalyst poisoning and lead to the reduction of circulation performance.
Figure 6. (a) Generated V(H2 + CO2) versus time for the dehydrogenation of FA over Pd@NH2-NC from the first to fifth cycles; (b) XRD patterns of Pd@NH2-NC before and after five cycles; (c) TEM image of Pd@NH2-NC after five cycles (inset: Particle size distributions); (d) XPS spectrum of Pd 3d for Pd@NH2-NC after five cycles. TEM: transmission electron microscopy; XPS: X-ray Photoelectron Spectroscopy; XRD: X-ray diffraction.
Based on the above studies, a possible mechanism for the dehydrogenation of FA over Pd@NH2-NC catalyst has been proposed [Figure 7]. FA molecules are firstly absorbed on the surface of Pd@NH2-NC, and the nitrogen/amino groups can act as proton scavengers to break the O-H bond and produce H+, leaving HCOO- on the Pd surface[15,51]. Subsequently, the electron-deficient Pd nanoclusters induced by metal-support interaction can be active for the rupture of the C-H bond and the formation of H-[3], followed by the release of CO2 molecules in this process. Finally, the H+ absorbed on amino groups combines with the H- absorbed on Pd nanoclusters to form H2. Therefore, the remarkable catalytic performance of Pd@NH2-NC can be attributed to the synergistic effect of nitrogen/amino co-functionalized carbon support, Pd nanoclusters, and metal-support interaction.
Figure 7. A possible reaction mechanism for dehydrogenation of FA over Pd@NH2-NC. FA: formic acid.
CONCLUSIONS
In summary, nitrogen/amino co-functionalized carbon-supported Pd nanoclusters have been successfully synthesized by a simple method for efficient dehydrogenation of FA. The nitrogen/amino co-functionalization of supports endows ultrasmall Pd nanoclusters with uniform dispersion and beneficial metal-support interaction, thus enhancing catalytic reactivity. The as-prepared Pd@NH2-NC exhibits a 100 % H2 selectivity, with a high TOFinitial of 4,892 h−1 and a low activation energy (Ea) of 28.5 kJ·mol−1 without additive at 298 K. In particular, TOFinitial value of Pd@NH2-NC reaches about 2.5 times, 9.5 times, and 188.2 times higher than that of Pd@NH2-C, Pd@NC, and Pt/C, respectively. We expect that this work suggests a co-functionalization strategy method for the design and synthesis of carbon-supported metal catalysts with desired performance.
